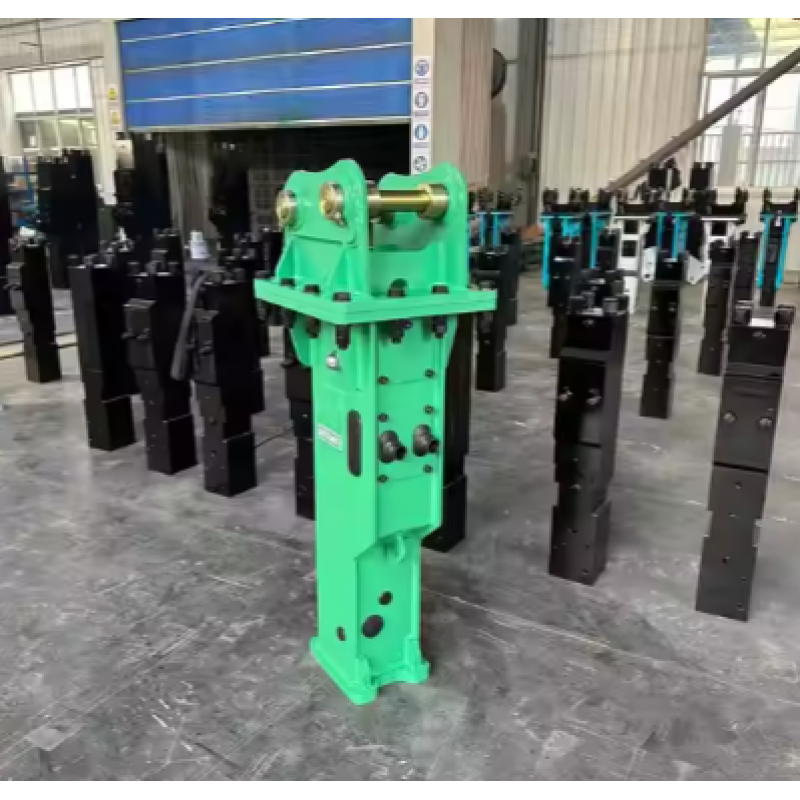

H45S Hydraulic Excavator Breaker Attachment High Efficiency for Mining and Demolition Hammer Work

Description

Operating Weight - With Tool

551.2 lb

Energy Class

399.8 ft·lbf

Machine Class

1-3 Ton Mini Excavators

Advantages for RKT hydraulic breaker

1. Design of Breaker Shell protects the mainbody from damages, and keeps low noise level while breaking.
2. Heavy-duty raw materials are chosen for RKT Cylinder, Piston, Front Head, Back Head, Through Bolt, Chisel and Breaker Shell, etc.
3. Super-developed Heat Treatment improves all parts' hardness, and prolongs the service life of Wakestone Hydraulic Breakers.
4. Perfect tolerance between Cylinder & Oil Reversing Valve, Cylinder & Piston, ensuring the most powerful striking of RKT Hydraulic Breaker.
5. Impacting Test must be done for every Wakestone Breaker, so we can promise all Wakestone Breakers are powerful enough before going into market.

Product Structure

• Through Bolt

Four bolts which connect the back head cylinder & front head.

• Back Head

The main function is to store nitrogen.

• Reversing Valve

Control the piston to move up and down at specified frequency.

• Cylinder

Here is the heart of the breaker, including the hydaulic circulation system to control the piston reciprocation.

• Piston

Transform the hydaraulic power into strike power,punch the chicel to break.

• Fronft Head

The function is to support the cylinder and fix the chicel,to avoid the shaking force break the cylinder when operating.

• Chisel

Chisel is specially strengthened for wearing.
